Exterior lights (headlamps) : remove
This is required when troubleshooting a headlamp issue. In my case it was a non working high beam on the left hanside.

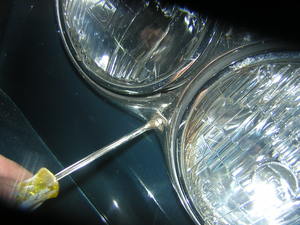

0-Remove the setscrew fairing located between the two lights
Tools: Flat screwdriver
1-Rise the chrome cover and pull forward
Raise the lower edge of the fairing and unhook it from the two upper retainers;On th epicture one of the two upper retainers
2-Remove the seals
3-Slacken the three philips setscrews
And turn anti-clockwise until the heads of the screws can pass through the enlarged ends of the slots in the mounting.
4-Remove the lamp unit

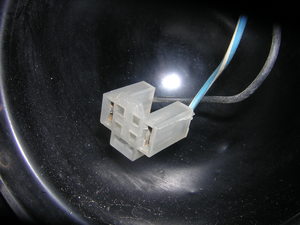

Detach the wirings
5-The inner lights have one hi beam filament and blue-white plastic wiring
6-The outer lights have two filaments
One for low beam (red-blue plastic) and one for high beam (bleu-white plastic)

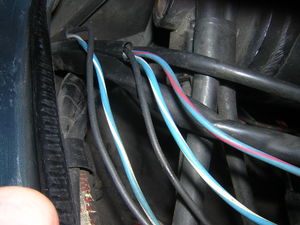

7-Here are the headlamps wires shown from inside the engine bay
